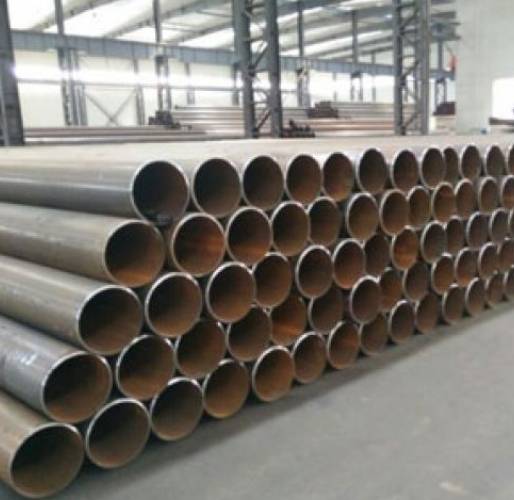

What is IS 3589 Fe 330 Pipe?

IS 3589 Fe 330 is the basic strength grade under the IS 3589 standard for large diameter ERW steel pipes. The designation explains a few things: IS 3589 is the standard. Fe means iron or steel. The number 330 indicates the minimum tensile strength in MPa.

Cost is the main reason to choose Fe 330. When your application does not demand high pressure ratings, Fe 330 delivers enough strength at a lower material cost. Gravity flow sewers, drainage lines, and low-pressure water distribution can all use this grade effectively. Apart from this, it is easy to weld.

The pipes get manufactured by roll forming steel plate into a cylindrical shape. We weld the longitudinal seam using high-frequency electric resistance welding. This ERW process produces a strong weld without filler metal. Each IS3589 pipe undergoes hydrostatic testing before dispatch. It ensures there are no leaks.

Fe 330 vs Fe 410 vs Fe 450

Here’s the comparison between Fe 330, Fe 410, and Fe 450:

Property Fe 330 Fe 410 Fe 450 Notes
Tensile Strength 330 MPa 410 MPa 450 MPa Breaking point
Yield Strength 210 MPa 250 MPa 310 MPa Deformation point
Pressure Rating Low Medium High Usage level
Cost Lowest Medium Highest Budget impact

Applications

IS 3589 Fe 330 pipes serve 4 major infrastructure projects where high strength is not required:

Water Transmission

Low-pressure water distribution mains, irrigation channels, and rural water supply schemes use Fe 330 pipes. The grade handles typical gravity-fed systems and low-head pumped mains. Apart from this, cement mortar lining protects internal surfaces to maintain water quality.

Sewerage

Gravity flow sewerage and drainage systems are ideal applications for Fe 330. No high pressure exists. No expensive grade is needed. The pipe carries flow by gravity. Proper coating selection protects against the aggressive environment inside sewer lines. Epoxy lining resists chemical attack from sewage.

Piling

Foundation piles for light structures use Fe 330 grade. The pipe gets driven into the ground and filled with concrete. For piling applications with heavy driving stresses or high structural loads, Fe 410 or Fe 450 grades are more appropriate. Fe 330 suits moderate-duty piling where soil conditions allow easy driving. It is a cost-saver.

Structural Casing

These pipes work well for borehole casing or protective sleeves. It is a simple solution for protecting internal cables or smaller pipes.

Frequently Asked Questions

  • What is IS 3589 Fe 330 used for?

    The IS 3589 Fe 330 pipe is generally used for gravity sewers, low-pressure water distribution, drainage systems, and light-duty piling.

  • What is the yield strength of Fe 330?

    The yield strength of Fe 330 is around 210 MPa.

  • When should I use Fe 330 instead of Fe 410?

    You should use Fe 330 instead of Fe 410 when the working pressure and budget are low. Gravity sewers, drainage outfalls, and low-head irrigation lines do not need Fe 410 strength. For municipal water transmission mains operating at typical pressures, Fe 410 is the standard choice. Check with the design engineer for the specified grade.

  • Can Fe 330 be used for water supply?

    Yes, Fe 330 can be used for low-pressure water supply applications. It is mainly found in rural water schemes, gravity-fed distribution systems, and low-head pumped mains. For higher pressure transmission lines or where thinner walls are desired, Fe 410 or Fe 450 provide more strength. The pipe should have cement mortar lining internally for potable water service.
