What is ASTM A53 Grade B Pipe?

ASTM A53 Grade B is the standard, higher-strength version within the ASTM A53 specification. It offers a minimum tensile strength of 60 ksi (415 MPa). This makes it the most specified choice for general-purpose carbon steel pipe applications.

The ASTM A53 specification covers pipes designed for mechanical and pressure service. Grade B handles higher operating pressures and heavier loads than Grade A. Its chemical composition includes up to 0.30% carbon, which provides the elevated strength values.

A53 Grade B pipe suits applications that need reliable performance under pressure. This grade is commonly used in fire protection systems, HVAC installations, structural frameworks, and process piping. It meets requirements for steam, water, gas, and air line service.

Chemical Composition of ASTM A53 Grade B Pipe

The chemical composition of ASTM A53 Grade B gives it the strength it needs to perform well in tough conditions. The controlled levels of carbon and manganese provide a good balance between mechanical performance and weldability.

Specification WT C % Mn % P % Max S % Max Si % Cr % Mo %
ASTM A53 / B AW 0.30 Max 0.27–0.93 0.050 0.060 – – –

Mechanical Properties of ASTM A53 Grade B Pipe

ASTM A53 Grade B provides higher mechanical strength than Grade A. These qualities make it ideal for structural and pressure service applications where strength is crucial.

Specification / Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%), 50 mm Specific Requirement
ASTM A53 Grade B 413 Min 240 Min 29.5 Five elements not to exceed 1%

Available Types

There are three different types of ASTM A53 Grade B pipes. Each type has its own distinct characteristics. This makes it ideal for certain uses and pressure needs.

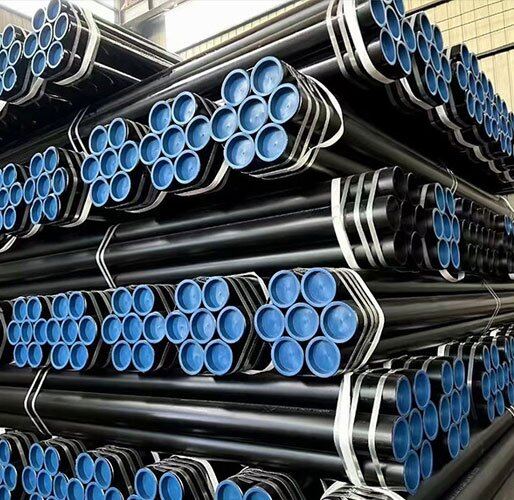

Type S – Seamless

Type S seamless pipes are made from solid billets that don't have any weld seams. The manufacturing process involves a heated billet that is pierced and rolled to make a hollow tube. This provides the pipe with a uniform wall thickness and consistent grain structure throughout. Seamless construction is better for pressure applications as it provides improved stability. There are no weak spots due to the absence of a weld seam. Grade B pipes are commonly used in critical pressure systems, boiler tubes and high-stress installations. We specialise in providing Type S pipes for important applications.

These pipes are also available as Type E and F. Type E (ERW) uses electric resistance welding to join rolled steel strip into pipe form. Type F employs furnace welding with continuous heating. Both welded types are used in general-purpose applications where seamless construction is not required.

Applications of A53 Gr B pipe

A53 Gr B pipe is used in many industries where strength and the ability to handle pressure are important. The grade works in mechanical, structural and fire protection systems.

Fire Protection Systems

Sprinkler systems, standpipes, and fire mains commonly use ASTM A53 Grade B pipe. The grade meets NFPA standards for fire protection installations. Its reliable pressure handling ensures water reaches all points during emergency activation. They are also widely used in building codes for wet and dry sprinkler networks. The pipe withstands system pressure testing and long-term standby conditions without compromise.

Mechanical Systems

HVAC piping, compressed air lines, and general mechanical applications rely on Grade B's consistent performance. The pipe handles the pressure variations typical in heating, ventilation, and cooling systems. Industrial facilities use this grade for process air distribution, equipment connections, and utility services. Its strength makes it ideal for installations that face dynamic loading and thermal cycling.

Structural Applications

Grade B’s higher yield strength makes it a preferred choice for columns, supports, and structural frames. Grade B provides better performance than Grade A in load-bearing applications. This grade is widely used by fabricators for building frames, mezzanine supports, and industrial racking systems. It provides the structural reliability that safety-critical installations demand.

Frequently Asked Questions

  • Can A53 Grade B be used for gas?

    Yes, ASTM A53 Grade B can be used for natural gas service when installed correctly according to the NFPA 54 and local building codes that cover natural gas piping installations. Qualified individuals must install the pipe following the right steps. Joints, connections and supports must meet code standards. It is important to check the local regulations before specifying the pipe for gas distribution systems.
