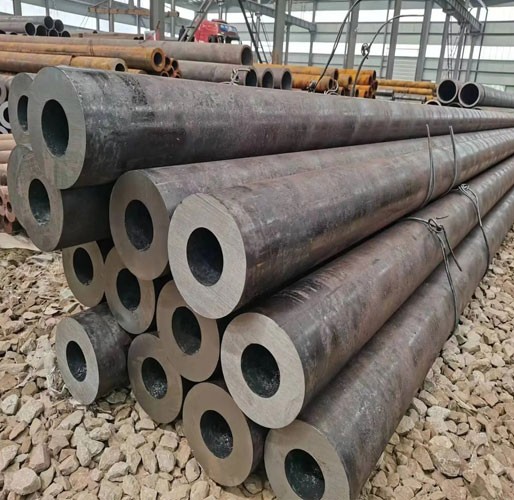

What is Heavy Wall Pipe?

Carbon Heavy Wall Thickness Pipe is steel pipe where the wall is thicker than standard or extra strong. This means it includes pipe schedule 80, 120, 160, and XXS. These are for high-pressure work. Heavy Wall Thickness Pipe Carbon Steel gets marked with labels like EH, XH, and XS. This helps you pick the right wall thickness for your job.

Schedule Comparison

Wall thickness goes up when the pipe schedule number goes up. You need to know these ratings to get the right pipe for your pressure needs.

  • SCH 40 (STD): Standard wall – general purpose applications
  • SCH 80 (XS): Extra strong – elevated pressure service
  • SCH 120 / 140 / 160: Heavy wall – high-pressure systems
  • XXS: Double extra strong – thickest wall, maximum pressure rating

Specification of Heavy Wall Pipee

Technical specifications for carbon steel heavy wall thickness pipes cover standards, schedules, dimensions and other information.

Dimensions ASTM, ASME and API
Thickness 3-12mm
Schedules SCH 160, 40, XS, 80, XXS, All Schedules
Size Suppliers of Size from 1/2” NB to 36” NB
Origin European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)
Type Seamless / ERW / Welded / Fabricated
Form Round, Hydraulic Etc
Length Min 3 Meters, Max18 Meters, or according to customer’s requirement Suppliers in Mumbai
Specialized in Large Diameter Carbon Steel Pipe
End Plain End, Beveled End, Treaded

Advantages of Heavy Wall Thickness Seamless Pipe

There are 2 main benefits to using thick wall carbon steel pipe.

Pressure Opposition

Thicker walls provide higher pressure ratings for demanding process conditions. The increased wall thickness directly correlates to higher allowable working pressure per ASME B31.3 calculations.

Improved Strength

A thick wall pipe provides better structural integrity. It is used for load-bearing. This pipe resists bending and crushing. It handles external loads better than thin pipes do.

Applications of Carbon Steel Heavy Wall Thickness Pipes

Carbon steel heavy wall thickness pipes serve 3 demanding industrial applications:

High Pressure Service

Process piping needs CS Heavy Wall Thickness Pipe. Pipelines that run at high pressures use it to stay within safety margins. It meets the codes for high pressure.

Hydraulic Systems

Hydraulic cylinder tubes and high-pressure fluid lines use heavy wall seamless pipe for their ability to withstand cyclic pressure loading without fatigue failure.

Structural Use

Heavy load-bearing structural applications such as columns, crane booms, and heavy equipment frames benefit from the increased section modulus of heavy wall pipe.
