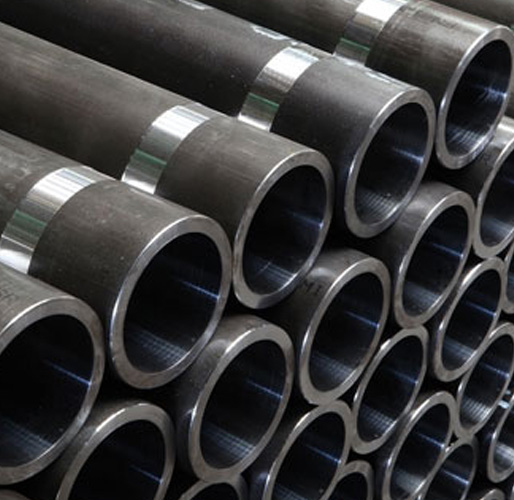

What is Grade 1020?
Grade 1020 is a low carbon steel (0.18-0.23% C) with excellent weldability and formability. This 1020 tube is a general purpose grade suitable for non-critical mechanical applications requiring good machinability and moderate strength. The aisi 1020 tube offers better strength than 1018 while maintaining good forming characteristics. It can be case hardened for improved surface wear resistance when required.
ASTM A519 Grade 1020 Tube Specification
Technical specifications for ASTM A519 SAE 1020 Carbon Steel Seamless Tube.
| Feature | Detail |
|---|---|
| Standard | ASTM A519 |
| Grade | 1020 |
| UNS Number | G10200 |
| Manufacturing Process | Hot Finished / Cold Drawn |
| Outside Diameter (OD) | 10 mm to 323.9 mm (½" to 12 ¾) |
| Wall Thickness | 1 mm to 40 mm (0.040" to 1.575") |
| Length | SRL, DRL, Cut-to-Length (up to 12 meters) |
| Surface Condition | Annealed / Normalized / Cold Drawn |
| Application | Mechanical / Structural / Automotive |
ASTM A519 Grade 1020 Tube Chemical Composition
Here is the chemical composition for SAE 1020 steel.
| Grade | C | Mn | Fe | P | S |
|---|---|---|---|---|---|
| AISI 1020 | 0.170 – 0.230 | 0.300 – 0.600 | 99.08 – 99.53 | ≤ 0.040 | ≤ 0.050 |
ASTM A519 Grade 1020 Tube Mechanical Analysis
Properties for the 1020 steel tube change based on the condition. We ensure these meet your needs.
| Grade | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| AISI 1020 | 380 MPa, 55100 psi | 165 MPa, psi 29700 | 25 % |
ASTM A519 Grade 1020 Tube Equivalent Grades
Grade 1020 equivalents across international standards.
| Grade | UNS |
|---|---|
| AISI 1020 / SAE 1020 | G10200 |
ASTM A519 Grade 1020 Tube Dimensions Chart
Complete dimensions chart showing OD, ID, and wall thickness combinations available below.
| Pipe/Tube | NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|---|
| AISI 1020 Pipes | 1/8″ |
|
|
|
|
|
| AISI 1020 Pipes | 1/4″ |
|
|
|
|
|
| AISI 1020 Pipes | 3/8″ |
|
|
|
|
|
| AISI 1020 Pipes | 1/2″ |
|
|
|
|
|
| AISI 1020 Pipes | 3/4″ |
|
|
|
|
|
| AISI 1020 Pipes | 1″ |
|
|
|
|
|
| AISI 1020 Pipes | 1 1/4″ |
|
|
|
|
|
| AISI 1020 Pipes | 1 1/2″ |
|
|
|
|
|
| AISI 1020 Pipes | 2″ |
|
|
|
|
|
| AISI 1020 Pipes | 2 1/2″ |
|
|
|
|
|
| AISI 1020 Pipes | 3″ |
|
|
|
|
|
| AISI 1020 Pipes | 4″ |
|
|
|
|
|
| AISI 1020 Pipes | 5″ |
|
|
|
|
|
| AISI 1020 Pipes | 6″ |
|
|
|
|
Applications
The 1020 tube finds use across 3 key industries requiring moderate strength and good formability:
